Description

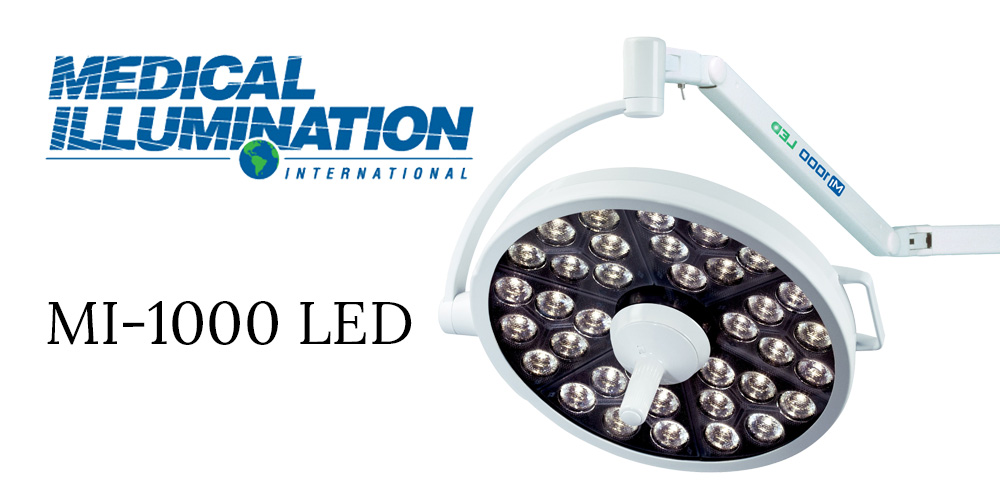

Ideal for larger surgeries and larger surgery rooms, the MI-1000 surgery light offers unsurpassed longevity and flexibility in a package that’s incredibly affordable.

The large diameter LED array provides exceptional shadow control – even with just a single light head. Controlling brightness within the illumination field is simple, with our 5-stage dimming (including minimally-invasive mode) control handle.

Technical Data

Optical Specification
# of LED’s 36
Output 100,000 Lux
@ 39.4″ (1m)
CCT 4,300°K
CRI 97
Focal Length 39.4″ (1m)
Dimming Levels 5
Dimming Percentages 100%, 87%, 75%,
62%, 50%
Endo Mode Yes
Light Field (d10) ≈Ø8.3″ (Ø209mm)
Light Field (d50) ≈Ø4.9″ (Ø124mm)
Depth of Illumination ≈24″ (610mm)
Illuminance (one mask) 27.2%
Illuminance (two masks) 37.2%
Illuminance (tube with one mask) 24.3%
Illuminance (tube with two masks) 40.3%
Irradiance 295 W/m²
Electrical Specifications
Supply Circuit 100 – 240 VAC, 50/60Hz
Fuse Rating 2.5 Amp/250VAC
Power Supply power handling capacity 100W
Light Head power consumption 54W
@24VDC
Mechanical Specifications
Light Head Weight 14.6 lbs (6.6 kg)
Light Head Dimensions Ø18″ (Ø457mm)
4″ H (102mm)
Arm Assembly Weight Single: 48.3 lbs
(21.9 kg)
Dual: 77.1 lbs
(35.0 kg)
Articulating Arm Vertical Movement +20° Up, -60° Down
Articulating Arm Horizontal Movement ≈540°
Articulating Arm/Yoke Interface ≈540°
Yoke/Light Head Interface ≈300°
Environmental Specifications
Ambient/Operating temperature 41°F to 104°F (5°C to 40°C)
Storage temperature -4°F to 122°F (-20°C to 50°C)
Humidity 10 – 90% Relative Humidity
Pressure 100kPA (@<2k meters)
