Description
Dual Modalities in a single solution
APR Anatomical Program
- Selection of the type of animal. Body part selection (single RAD.)
- The Anatomical Program workflow
- Allows you to quickly image any animal
- in RAD or Dynamic mode in 3 easy steps
- Body part selection (Dynamic
- mode.)
SINGLE TOUCH 3.0
- Dual independent monitors are included – The 17-inch console monitor provides patient information, technique settings and static images from RAD mode. The 24-inch Monitor displays dynamic images from “Cine” (video) the Dynamic mode.

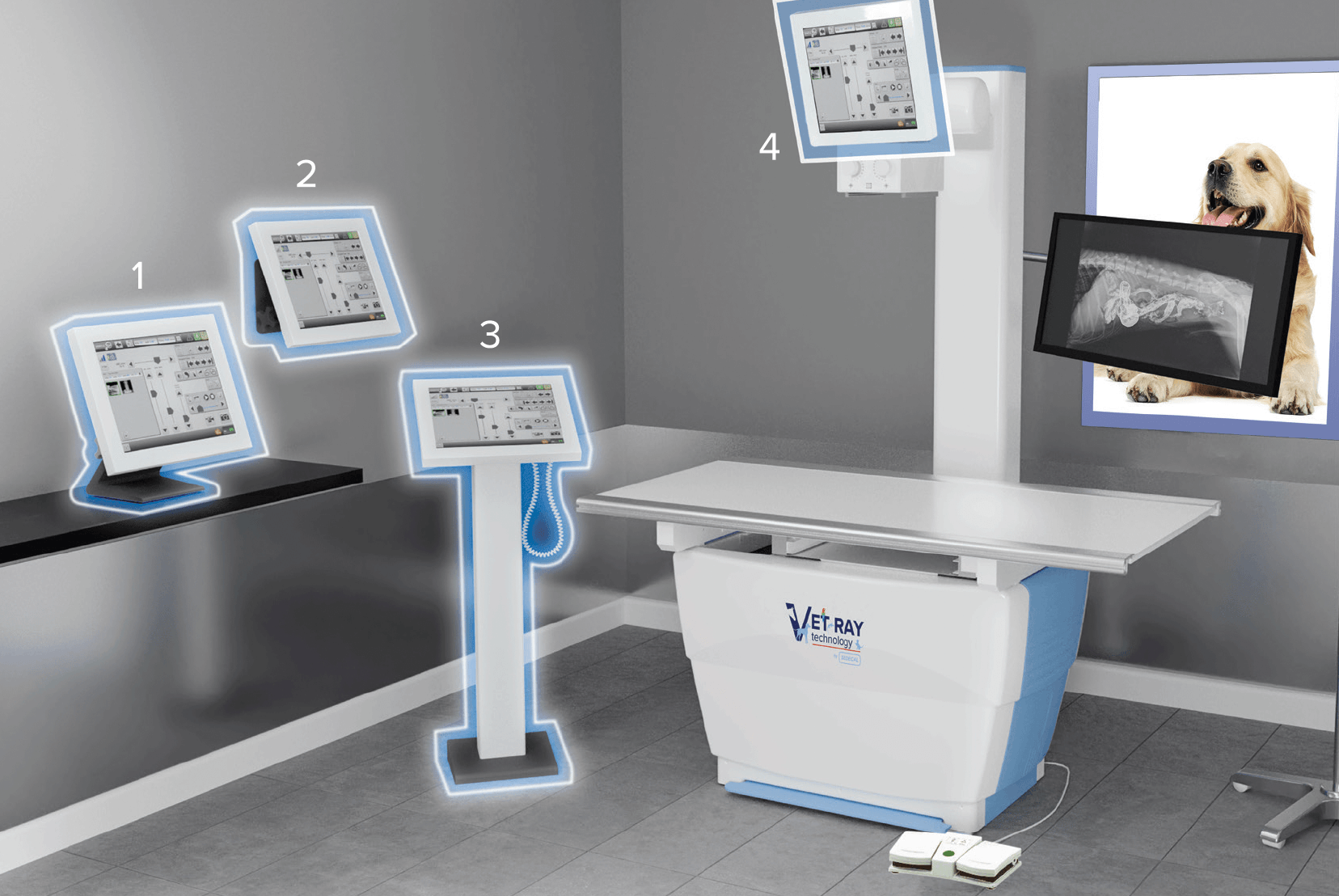

- Both monitors have optional mounting locations. The console has the 4 shown optional locations. The Dynamic monitor has 3 optional mounting locations: tube stand, floor stand or wall mount.
- Diagnostic and Image Review
- Mini-Pacs software and viewer included
- Extensive measurement tools for both static and dynamic evaluation
- Patient Data Management according to DICOM 3.0 protocol
- Remote support via Internet connection
Specifications
SPECIFICATIONS
- Constant Potential kW ratings 32 kW
- kVp Range 40-125 kVp
- mAs Range 0.1 – 500 mAs
- mA Range
- 10 / 12,5 / 16 / 20 / 25 / 32 / 40 / 50 / 64 / 80 / 100 / 125 /
- 160 / 200 / 250 / 320 / 400
- X-Ray tube Rotating Anode (0.6 / 1.2 mm)
- X-Ray generator Line Powered 208-240 VAC Single Phase or 3 Phase
- Exposure time 0,001 – 10 seg
TABLE SPECIFICATIONS
- Tabletop type 4-way float type
- Tabletop length Standard 5-ft; optional 6-ft
- Maximum load patient weight 210 lb. or 96 kg
- Brakes Electromagnetic
17×17 FLAT PANEL DETECTOR
- Panel – Amorphous silicon active TFT-diode array
- Scintillator – Direct deposition CsI TI
- Pixel Matrix – 4288 x 4288
- Pixel Pitch – 100 microns
- ADC – 16 bits
- Image Transfer Rate – 600 ms
- Physical Size – 17-inch x 17 inch
- Active Area – 426 mm x 426 mm
- Housing – Aluminum Frame with Carbon Fiber Window
