Description

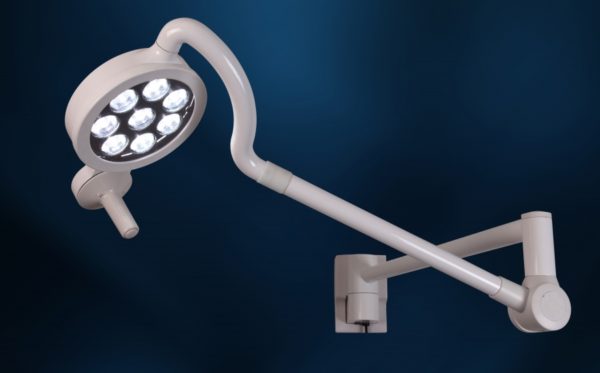

The compact but powerful MI-550 is the perfect fit and offers the greatest value in an examination light. It provides maximum brightness, sharpness and color accuracy. The 50,000 hour-rated LED life means this light will faithfully serve your practice for many long years, while consuming the least amount of energy.

Also, the new MI Series features longer arms that provide a wider 11-foot circle of reach, along with even smoother movement, greater maneuverability, plus an improved mounting system.

  • Output rated at 55,000 LUX at 24″ (610mm) distance
  • 4,300° K pure white illumination
  • CRI (Color Rendering Index) of 97
  • Whiter, more color-correct light than halogen exam lights
  • Near-zero heat from both light beam and light head housing
  • High efficiency with half the electric consumption of standard halogen lights
  • Compact head design with smooth arm articulation
  • Lower overall maintenance costs due to long-lasting LEDs

Technical Data

Optical Specification
# of LED’s 8
Output 55,000 Lux
@ 24″ (0.6m)
CCT 4,300°K
CRI 97
Focal Length 24″ (0.6m)
Dimming Levels 2
Dimming Percentages 100%, 50%
Endo Mode No
Light Field (d10) ≈Ø6.0″ (Ø152mm)
Light Field (d50) ≈Ø3.5″ (Ø 89mm)
Irradiance 71 W/m²
Electrical Specifications
Supply Circuit 100 – 240 VAC, 50/60Hz
Fuse Rating 1.5 Amp/250VAC
Power Supply power handling capacity 65W
Light Head power consumption 16W
@24VDC
Mechanical Specifications
Light Head Weight 6.9 lbs (3.1 kg)
Light Head Dimensions Ø9.2″ (234mm)
2.6″ (66mm)
Arm Assembly Weight Single: 48.3 lbs
(21.9 kg)
Dual: 77.1 lbs
(35.0 kg)
Articulating Arm Vertical Movement +20° Up, -60° Down
Articulating Arm Horizontal Movement ≈540°
Articulating Arm/Yoke Interface ≈540°
Yoke/Light Head Interface ≈300°
Environmental Specifications
Ambient/Operating temperature 41°F to 104°F (5°C to 40°C)
Storage temperature -4°F to 122°F (-20°C to 50°C)
Humidity 10 – 90% Relative Humidity
Pressure 100kPA (@<2k meters)
